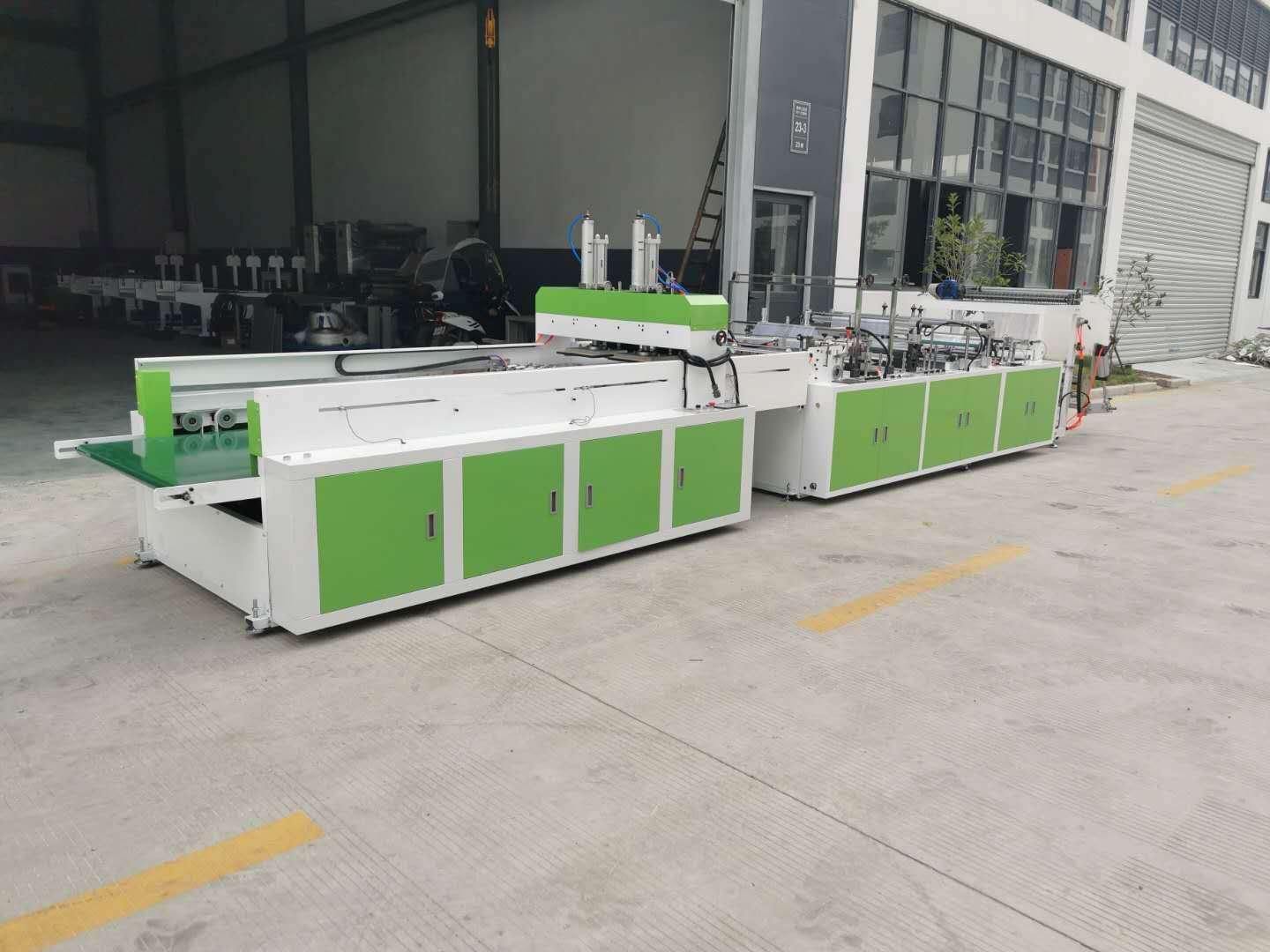

HSFD-1000/1200 Automatic plastic square bottom bag making machine

HSFD-1000/1200 Automatic plastic square bottom bag making machine |
Categories: Bag Making Machine |
Tel: 0086 577-66817170 |
Mobile: 0086 15858567170 |
Email: rahsjx@rahsjx.com |
Songjiadai Industrial Zone, Feiyun Street, Ruian city, Zhejiang,CHINA. |
1.Use
It is suitable for sealing and cutting of PE film, the sealing is firm and accurate, and it is fully automatic electric eye tracking. Mainly used to produce plastic film square bottom bags, square bags, three-dimensional bags.
2.Performance and characteristics
1)This series of machines adopt computer control, electric eye color tracking, static eliminator, automatic counting, automatic constant temperature control and alarm devices, with stable performance, convenient operation and firm back cover.
2) One machine with multiple functions: square bottom bag machines of different sizes and forms can be customized.
3.Main technical specification
Model |
HSFD-1200 |
HSFD-1000 |
Bag making width |
1150mm |
950mm |
Bag making length |
1200mm |
1200mm |
Bag making depth |
260mm |
260mm |
Speed |
30-60 pcs/min. |
30-60pcs/min. |
Main motor |
2.2kw |
2.2kw |
Voltage |
380V,50HZ, 3phase |
|
Gross weight |
3000kg |
2800kg |
Dimension |
13×2×1.8m |
12×1.8×1.8m |
-
